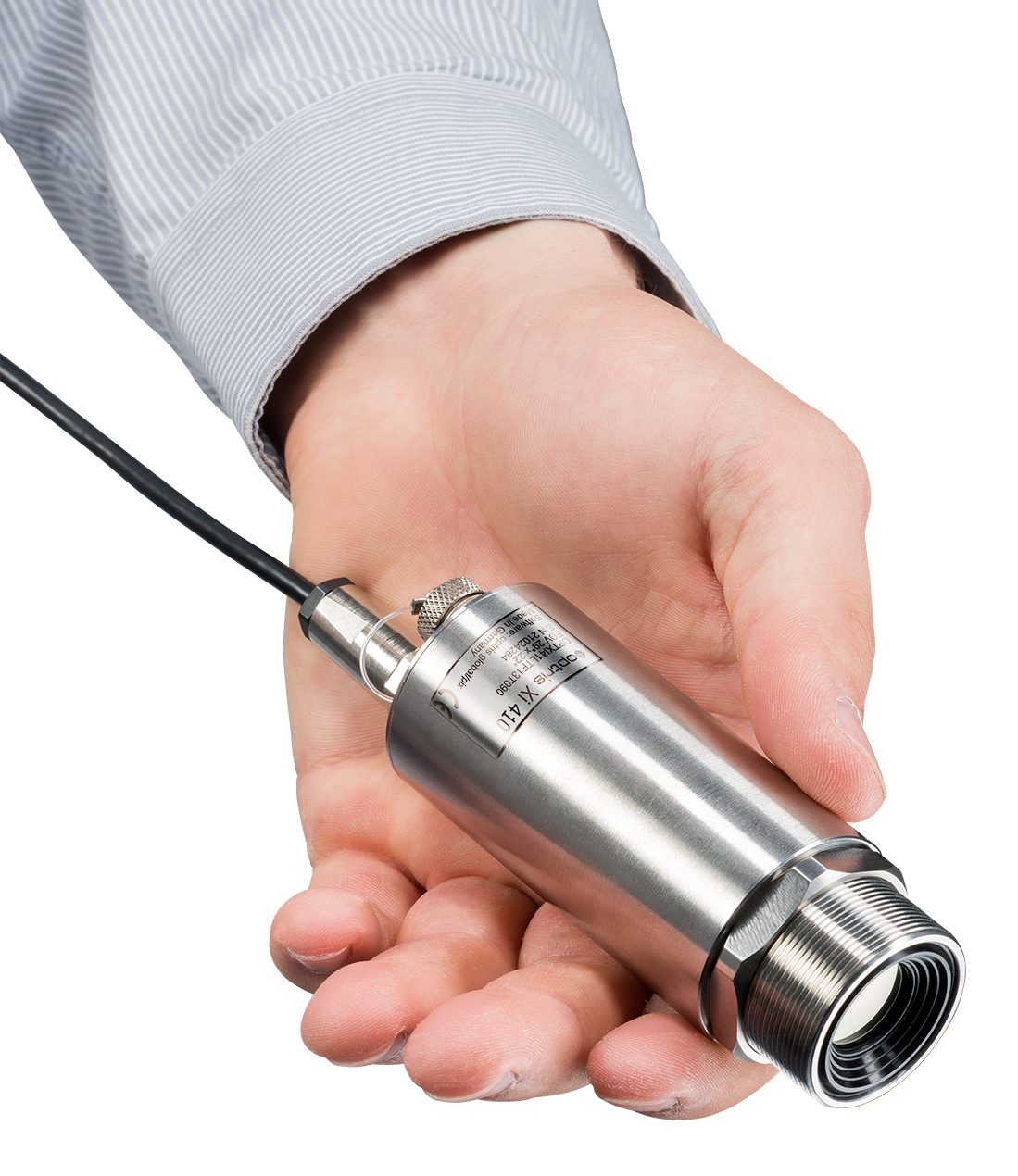

Compact Infrared Imager

Optris

The compact infrared imager combines the benefits of infrared cameras and infrared thermometers. The Xi 410 works both as an IR camera with a PC and software, and fully autonomously as a target-seeking pyrometer with analog/alarm output. Calibrated for temperature measurements up to 1652°F, it has a fast Ethernet interface and can be conveniently powered via PoE. The integrated auto hotspot-finder function can be used to reliably measure moving objects without having to readjust the camera. If the network connection is disrupted or there is a problem in the connected PC, the camera takes on the job fully autonomously and ensures a reliable alarm if a problem is detected. This feature makes the Xi 410 ideal for all safety-relevant applications in the condition monitoring of machines and equipment.
www.optris.com

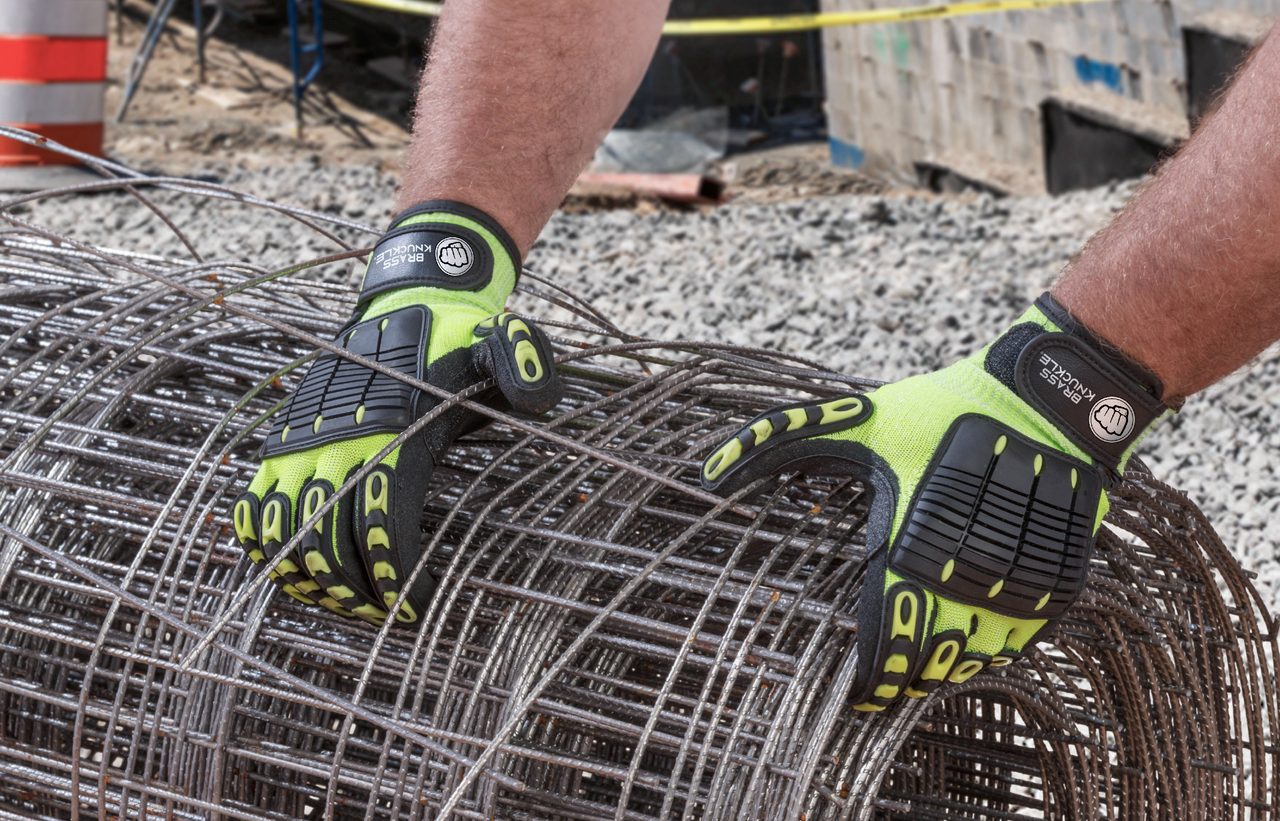

Safety Glove

Brass Knuckle

SmartShell is a cross-functional safety glove that provides impact protection, cut protection and excellent grip in wet conditions. The glove features a machine-knit, ultrahigh-molecular-weight polyethylene (UHMWPE) with ANSI cut level A5 protection on the palms. Its strength-to-weight ratio is 8 to 15 times higher than steel. In addition, thermoplastic rubber (TPR) padding is sonically welded to the back of the glove for protection from contusions, smash injuries, object strikes, pinch-point injuries to the tips of each finger and other impact hazards. A gritty black nitrile palm coating offers excellent wet grip, and the bright lime-green shell color meets the requirements of ANSI/ISEA 107-2010 for high-visibility safety apparel. SmartShell naturally shapes to the contours of the hand and flex points, helping to ensure maximum comfort and increased compliance. www.brassknuckleprotection.com

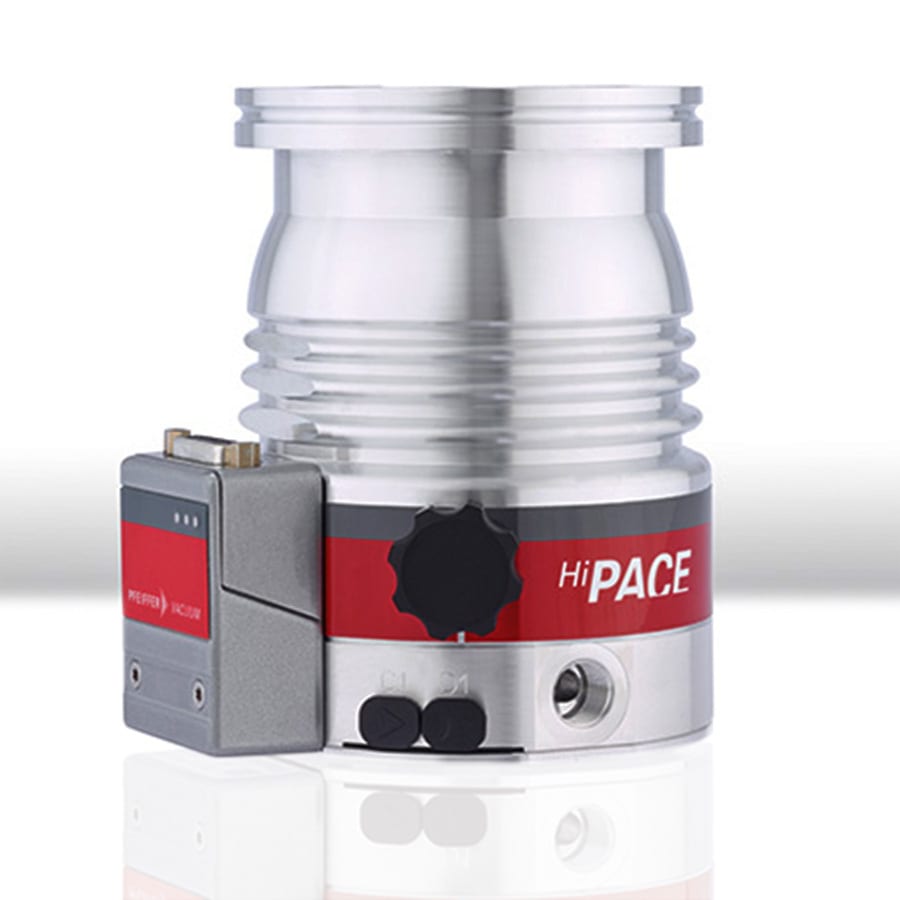

Low-Vibration Vacuum Pump

Pfeiffer Vacuum

The HiPace 80 Neo turbopump, features a longer life before service and reduced vibration and noise emissions. These benefits are made possible with the advanced Laser Balancing system developed by Pfeiffer Vacuum for turbopump rotors. Thanks to this patented technology, the vacuum pump is particularly suitable for vibration-sensitive applications. Possible applications range from mass spectrometry and electron microscopy to leak detectors and RGA systems. The hybrid bearing of the HiPace 80 Neo consists of an oil-lubricated, ceramic ball bearing on the fore-vacuum side and a permanent-magnet radial bearing on the high-vacuum side.
www.pfeiffer-vacuum.com

Cleanliness Inspection System

Olympus

A cleanliness inspection system’s latest software update includes a new microscope mode, providing component manufacturers with an all-in-one imaging solution for particle analysis and microscope inspections. The CIX100 system is a turnkey solution dedicated to technical cleanliness inspection with a guided workflow, analysis tools and integrated industry standards. An optimized auto-focus routine and optional overview scan speed up the automated analysis, making it easier to achieve repeatable results quickly. The new microscopy mode enables users to leave the dedicated cleanliness inspection workflow to perform microscopic imaging for other applications.
www.olympus-ims.com

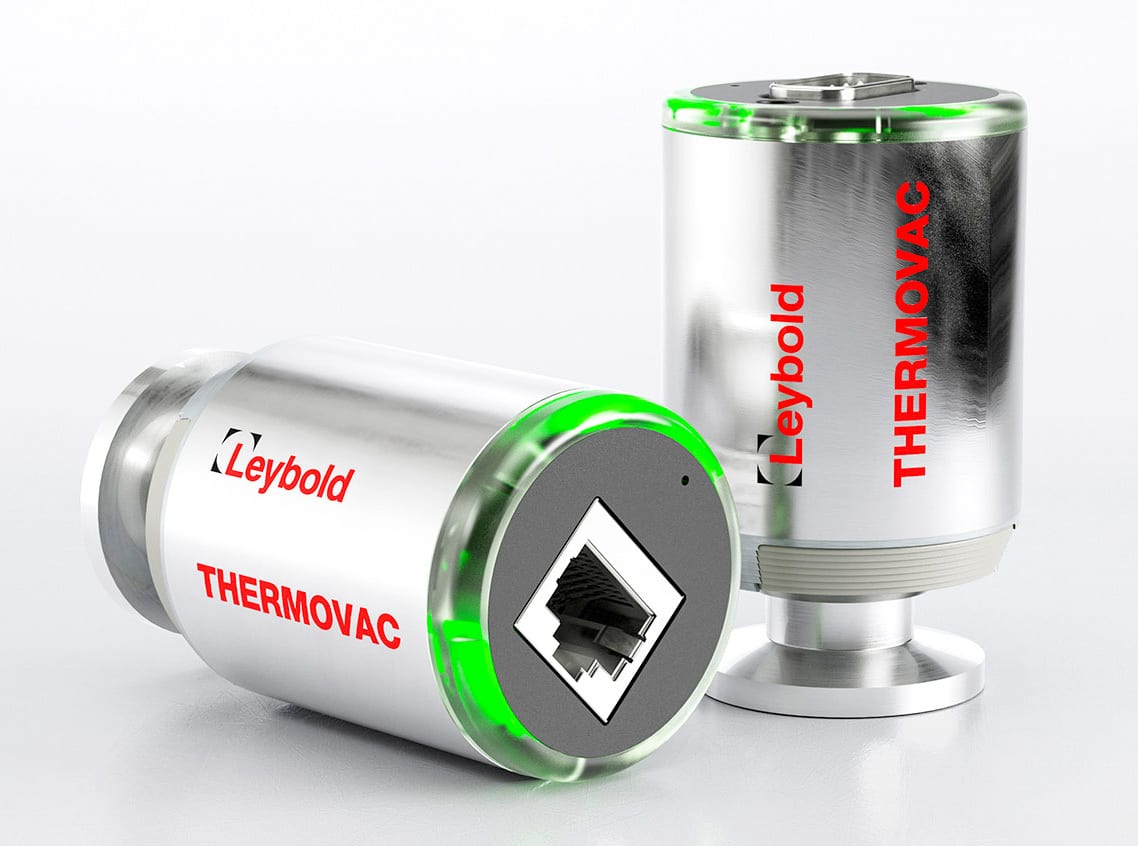

Filament Pirani Gauges

Leybold

The Thermovac TTR-RN series is a new compact filament Pirani gauge for all vacuum applications requiring a measurement range from atmosphere to 1e-4 mbar. With compact dimensions and rugged filaments, this gauge is equally well suited for analytical applications and industrial processes. It will support users to more easily monitor small and large vacuum systems and allow them to control and scale them in a more targeted manner. The core element of the measuring device is its new filament technology, which increases the sensitivity and accuracy of measurements. With reliable and reproducible measurement results, even the roughest vacuum processes can be optimized easily and quickly. As a result, dead process time is reduced and throughputs in vacuum processes are increased.
www.leybold.com
